Description

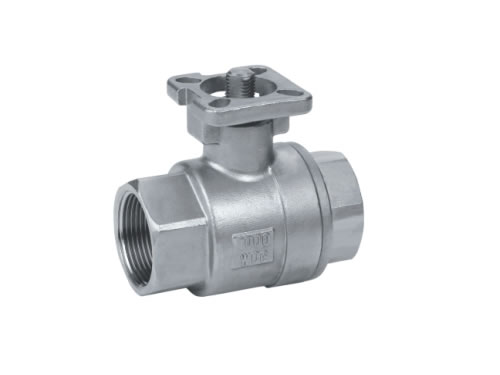

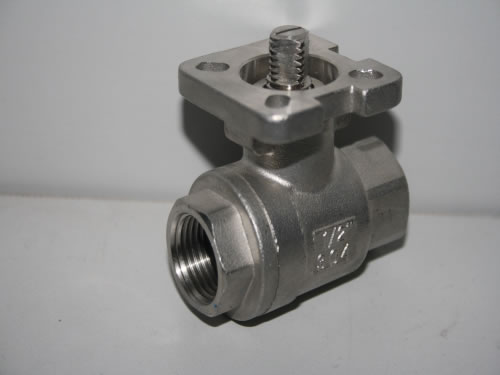

2PC threaded ball valve with ISO 5211 mounting pad is easy to open and close, just needing to rotate 90°. Due to high corrosion resistance, it can be widely used in water, oil, natural gas, some corrosive liquid, etc. This 2PC ball valve is mainly utilized for cutting off, distributing and altering the flowing direction of medium. It has distinct features like small volume, reliable sealing performance, simple structure and convenient maintenance.
Advantages
1. Threaded ball valves are guaranteed within 18 months.
2. Our company attaches much importance on technology renovation, process improvement, structure optimization and quality improvement. Besides, we have excellent after-sale service system, winning a gamut of satisfied customers.
3. PTEE of excellent self-lubrication has been adopted, leading low friction loss coefficient, good performance and excellent sealing property.
4. All sealing materials use standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In this way, the sealing performance and wear resistance is guaranteed, leading a longer service life.
Main Parts of 2PC Threaded Ball Valve with ISO 5211 Mounting Pad
|
NO.
|
Part Name
|
Material
|
QTY
|
|
1
|
Body
|
CF8/CF8M
|
1
|
|
2
|
Gland Nut
|
304/316
|
1
|
|
3
|
Stem Packing
|
PTFE
|
1
|
|
4
|
Stem
|
304/316
|
1
|
|
5
|
Thrust Washer
|
PTFE
|
1
|
|
6
|
Joint Gasket
|
PTFE
|
1
|
|
7
|
Joint Ring
|
PTFE
|
2
|
|
8
|
Cap
|
CF8/CF8M
|
1
|
|
9
|
Ball
|
304/316
|
1
|
Technical Parameters of 2PC Threaded Ball Valve with ISO 5211 Mounting Pad
Design Standard: GB/T12224, GB/T8464
Pressure-Temperature Rating: GB/T12224
Face to Face Standard: GB/T25188.3
End Connection Standard: G, Rc, Rp, NPT, BSP, DIN259/2999
Test Standard: GB/T23927
Material: WCB, CF8 (304), CF8M (316)
Operated Way: Handle, Actuator, Electric
