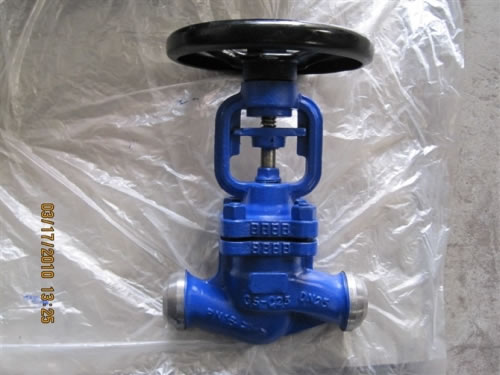

Description
DIN cast steel welded globe valves, a kind of DIN globe valves, are mainly utilized for regulating flow in such pipelines as tap water, sewage, construction, petroleum, metallurgy, energy system, etc. They are widely used in such applications requiring throttling and frequent operation.
Advantages of Cast Steel Globe Valve
1. DIN cast steel welded globe valves characterize in good sealing performance, small friction between sealing faces and long service life.
2. DIN globe valves need low torque to open.
3. Valve body is precisely cast.
4. Valve disc is processed by CNC technology.
5. Featuring simple structure, they are convenient to install and maintain.
Features
1. Medium passway of DIN cast steel globe valves is quite zigzag, so the hydraulic resistance is large, leading to big power consumption.
2. When in use, the medium flow direction in DIN globe valves is unidirectional and its flow direction can not be changed.
Structure of DIN Cast Steel Globe Valve
Main Parts and Materials of Cast Steel Globe Vlave
|
NO.
|
Part Name
|
Material
|
|
GS-C25
|
1.4308
|
1.4408
|
1.4306
|
1.4435
|
|
1
|
Body
|
GS-C25
|
G-X6CrNi18 9
|
G-X6CrNiMo18 10
|
G-X2CeNi18 9
|
G-X2CrNiMo17 12 2
|
|
2
|
Disc
|
1.4006 X10Cr13
|
1.4301 X5CrNi18 10
|
1.4401 X3CrNiMo17 13 2
|
1.4306 X2CrNi19 11
|
1.4435 X2CrNiMo17 12 2
|
|
3
|
Pin
|
1.4001 X7Cr13
|
1.4001 X7Cr13
|
1.4301 X5CrNi18 10
|
1.4301 X5CrNi18 10
|
|
4
|
Bellow assemble
|
1.4878 X12CrNiTi189
|
1.4401 X3CrNiMo17 13 2
|
1.4306 X2CrNi19 11
|
1.4435 X2CrNiMo17 12 2
|
|
5
|
Stem
|
1.4006 X10Cr13
|
|
1.4401 X3CrNiMo17 13 2
|
1.4401 X3CrNiMo17 13 2
|
1.4435 X2CrNiMo17 12 2
|
