Description

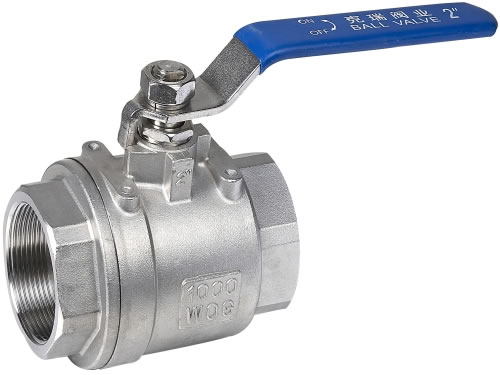

2PC threaded end ball valve (2PC screwed end ball valve) is used for cutting off, distributing and changing the flowing direction of medium. It characterizes small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.
Advantages
1. Our threaded end ball valve is guaranteed within the first 18 months.
2. KERUI pays much importance on technology renovation, process improvement, structure optimization and quality improvement.
3. We have excellent after-sale service system, providing timely and optimal service, thus winning widespread recognition and praise of our customers.
Performance
1. Threaded end ball valve can be widely used in water, oil, natural gas, weak corrosive liquid, etc.
2. PTFE of excellent self-lubrication has been adopted, leading excellent performance and superior sealing property.
3. All sealing materials use standard PTFE and PPL, carbon fiber, etc. They are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In this way, the sealing performance and wear resistance is guaranteed, ensuring a longer service life.
Components of 2PC Threaded End Ball Valve
|
Main Parts And Materials
|
|
|
|
NO.
|
Part Name
|
Material
|
QTY
|
|
1
|
Cap
|
CF8/CF8M
|
1
|
|
2
|
Joint Gasket
|
PTFE
|
1
|
|
3
|
Body
|
CF8/CF8M
|
1
|
|
4
|
Ball
|
304/316
|
1
|
|
5
|
Stem
|
304/316
|
1
|
|
6
|
Joint Ring
|
PTFE
|
1
|
|
7
|
Thrust Washer
|
PTFE
|
1
|
|
8
|
Stem Packing
|
PTFE
|
1
|
|
9
|
Gland Nut
|
304/316
|
1
|
|
10
|
Thrust Washer
|
304/316
|
1
|
|
11
|
Stem Nut
|
304/316
|
1
|
|
12
|
Handle
|
304/316
|
1
|
|
13
|
Handle Cover
|
Plastic
|
1
|
Technical Parameters of 2PC Threaded End Ball Valve
