Description

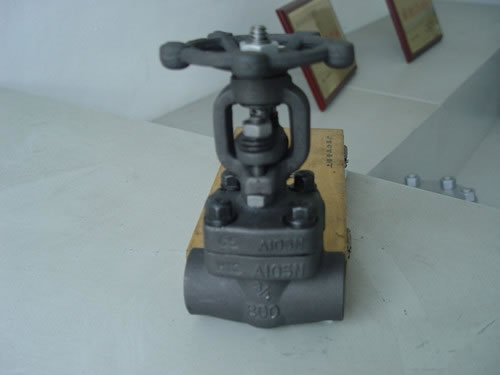

Threaded forged steel gate valve is a kind of most common open/close valve. It is mainly composed of valve body, disc, bonnet, valve gland, gasket, bolt and nut. This threaded gate valve uses disc to connect or cut off medium in pipeline. Disc functions like a sluice gate to connect or cut off media, so it is called gate valve or sluice valve. The on-off component of gate valve is valve disc. The movement direction of disc is perpendicular to the flowing direction of fluid. Gate valve can only be opened or closed fully.
Applications
Forged steel threaded gate valve can be widely applied as fluid regulating and intercepting equipment in various pipelines, such as tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy pipeline systems.
Classification
Threaded sluice valves can be classified according to fluid’s pressure grades into 900LB, 1500LB and 2500LB.
Features
1. Sealing material can be selected according to fluid so as to increase sealing property and wear resistance of the threaded gate valve and decrease cost.
2. Threaded forged steel gate valve needs small torsion to open.
3. Valve body adopts precision casting technique.
4. Numerical control processing is utilized on valve disc.
5. Valve seat is replaceable, which makes maintenance more simple and convenient.
6. Twice shot blasting processing on outer surface makes the threaded gate valve look fine and smooth.
7. Guarantee period of our products is 18 months. Lifelong technology service is offered.
Pressure: CLASS900-1500 PN16.0~26.0
1. Bolted Bonnet/Welded Bonnet
2. Full Port
3. Solid Wedge Gate
4. Treaded Ends or SW Ends
Technical Specification of Threaded Forged Steel Sluice Valves
|
Technical Specification
|
ASME/API
|
GB/JB
|
|
Design Standard
|
API602
|
GB/T7746
|
|
Pressure-Temperature Rating
|
ASME B16.34
|
GB/T12224
|
|
Face-Face
|
Factory Standard
|
GB/T7746
|
|
Socket-Welded Ends
|
ASME B16.11
|
GB/T1751
|
|
Threaded Ends
|
ASME B1.20.1
|
GB/T306
|
|
Inspection & Test
|
API598
|
JB/T9092
|
Material List for Main Parts of Threaded Forged Steel Gate Valves
|
No.
|
Part Name
|
ASTM
|
|
Carbon Steel
|
Tailess Steel
|
Alloy Steel
|
|
1
|
Body
|
A105
|
LF2/LF3
|
A182 F304
|
A182 F11/F22
|
|
2
|
Seat
|
A182F6a
|
A182F6a
|
A182 F304
|
A182 F11/F22
|
|
3
|
Wedge
|
A182F6a
|
A182F6a
|
A182 F304
|
A182F6a
|
|
4
|
Stem
|
A276-410
|
A276-410
|
A276-304
|
A276-410
|
|
5
|
Gasket
|
Graphite+304
|
|
6
|
Sealing Ring
|
Graphite
|
|
7
|
Yoke
|
A216-WCB
|
A216-WCB
|
A351 CF8
|
A216-WCB
|
|
8
|
Bonnet
|
A105
|
LF2/LF3
|
A182 F304
|
A182 F11/F22
|
|
9
|
Bolt
|
A193 B7
|
A320L7
|
A193 B8
|
A193 B16
|
|
10
|
Packing
|
Graphite
|
|
11
|
Stem Bushing
|
A276-410
|
A276-410
|
A276-304
|
A276-410
|
|
12
|
Gland
|
A216-WCB
|
A216-WCB
|
A351 CF8
|
A216-WCB
|
|
13
|
Eye Blot
|
A193 B7
|
A320 L7
|
A193 B8
|
A193 B7
|
|
14
|
Stem Nut
|
A276-410
|
|
15
|
Handwheel
|
A197 or A47-32510
|
Main Dimensions & Weight of Forged Steel Threaded Gate Valves
|
Pressure
|
Size
|
Main Dimension of Valve
|
Weight(kg)
|
|
mm
|
in.
|
D
|
L
|
H
|
W
|
|
BB/WB
|
PB
|
BB/WB
|
PB
|
BB/WB
|
PB
|
BB/WB
|
PB
|
WB
|
PB
|
|
CLASS900 PN16.0
|
8
|
1/4
|
7
|
-
|
102
|
-
|
166
|
-
|
120
|
-
|
3.6
|
-
|
|
10
|
3/8
|
10
|
-
|
102
|
-
|
166
|
-
|
120
|
-
|
3.5
|
-
|
|
15
|
1/2
|
13
|
13
|
102
|
140
|
169
|
321
|
120
|
125
|
3.4
|
11.5
|
|
20
|
3/4
|
18
|
18
|
111
|
140
|
193
|
321
|
125
|
125
|
3.8
|
11.0
|
|
25
|
1
|
24
|
24
|
120
|
140
|
230
|
321
|
160
|
160
|
7.8
|
10.2
|
|
32
|
1-1/4
|
29
|
29
|
120
|
178
|
246
|
380
|
160
|
160
|
11.9
|
20.5
|
|
40
|
1-1/2
|
36.5
|
36.5
|
140
|
178
|
283
|
414
|
180
|
180
|
12.2
|
21.7
|
|
50
|
2
|
46.5
|
46.5
|
178
|
216
|
330
|
502
|
200
|
240
|
21.9
|
43.5
|
|
CLASS1500 PN26.0
|
8
|
1/4
|
7
|
-
|
102
|
-
|
166
|
-
|
120
|
-
|
3.6
|
-
|
|
10
|
3/8
|
10
|
-
|
102
|
-
|
166
|
-
|
120
|
-
|
3.5
|
-
|
|
15
|
1/2
|
13
|
13
|
102
|
140
|
169
|
321
|
120
|
125
|
3.4
|
11.5
|
|
20
|
3/4
|
18
|
18
|
111
|
140
|
193
|
321
|
125
|
125
|
3.8
|
11.0
|
|
25
|
1
|
24
|
24
|
120
|
140
|
230
|
321
|
160
|
160
|
7.8
|
10.2
|
|
32
|
1-1/4
|
29
|
29
|
120
|
178
|
246
|
380
|
160
|
160
|
11.9
|
20.5
|
|
40
|
1-1/2
|
36.5
|
36.5
|
140
|
178
|
283
|
414
|
180
|
180
|
12.2
|
21.7
|
|
50
|
2
|
46.5
|
46.5
|
178
|
216
|
330
|
502
|
200
|
240
|
21.9
|
43.5
|
Note: H means the height when valve is fully opened.
Attentions When Selecting Forged Steel Threaded Gate Valves
1. Valve Form (Category, Structure and Connection Type)
2. Medium (Sluice Valve’s Material and Corrosivity)
3. Size of Diameter
4. Working Pressure (Intensity and Airtightness)
5. Working Temperature
Payment, Package and Delivery
1. Products can be paid by T/T, D/P, D/A, L/C or according to your requirement.
2. Threaded gate valves (threaded sluice valves) are packaged by standard exported wooden cases.
3. Our threaded forged steel gate valves are transported by sea, railway or air.
