Description

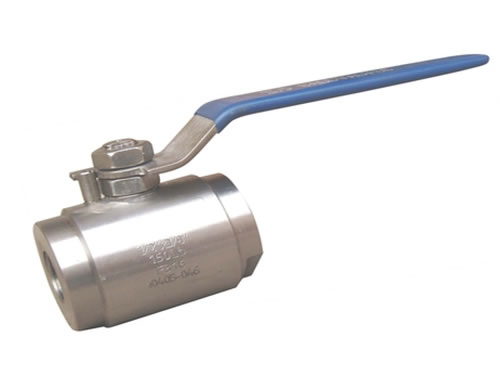

2PC high pressure ball valve is used for cutting off, distributing and changing the flowing direction of medium. This 2PC thread ball valve is easy to open and close. It features in small volume, reliable sealing performance, simple structure, convenient maintenance and high corrosion resistance.
Performance
1. 2PC high pressure ball valve can be widely used in water, oil, natural gas, some corrosive liquid, etc.
2. Adopting PTEE that is of excellent self-lubrication, the 2PC thread ball valve is low in friction loss coefficient, good in performance and excellent in sealing property.
3. The sealing materials of this 2PC high pressure ball valve all adopt standard PTFE and PPL, carbon fiber, etc. And they are formed and cooled under high-temperature pressing, then processed by digital controlled lathe. In thus way, the sealing performance and wear resistance is guaranteed, leading a longer service life.
4. The ball of 2PC thread ball valve is of floating type, therefore, under the function of pressure, it can generate a certain amount of displacement and press tightly on the sealing surface of exit end. In thus way, this ball valve can guarantee excellent sealing performance of exit end.
Advantages
1. 2PC high pressure ball valve have received ISO9001 quality system certification, CE certification and API 6D standard.
2. Our company pays much attention to technology renovation, process improvement, structure optimization and quality improvement. Besides, KERUI products are strictly inspected before into storage, thus ensuring products’ quality.
3. We have excellent after-sale service system, winning widespread recognition and praise of our customers. Our 2PC thread ball valves are guaranteed within 18 months.
Main Components of 2PC High Pressure Ball Valve
|
NO
|
Part name
|
Carbon Steel
|
Stainless Steel
|
|
|
1
|
Body
|
A105
|
F304
|
F316
|
F316L
|
|
2
|
Ball
|
SS304
|
SS316
|
SS316L
|
|
3
|
Stem
|
SS304
|
SS316
|
SS316L
|
|
4
|
Seat
|
PTFE, RPTFE, NYLON
|
|
5
|
Gasket
|
O-RING, PTFE, GRAPHITE
|
|
6
|
Stuffing
|
PTFE, GRAPHITE
|
|
7
|
Gasket
|
PTFE
|
|
8
|
Locating Piece
|
A283D, Stainless Steel
|
|
9
|
Lever
|
A283D, Stainless Steel
|
|
10
|
Stem Nut
|
Stainless Steel A276-T304
|
|
11
|
Stop Pin
|
Stainless Steel A276-T304
|
Technical Parameters of 2PC High Pressure Ball Valve
