Introduction

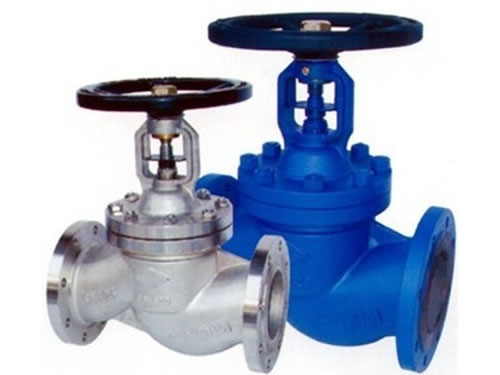

DIN flange stainless steel bellows seal globe valve is used to regulate flow of pipelines. The valve body is made from GS-C25, 14308 G-X6CrNi18-9, 1.4408 G-X6CrNiMo18-10, 1.4306 G-X2CrNi 18-9 and 1.4435 G-X2CrNiMo17-12-2. The disc is made from 1.4006 X10Cr13, 1.4301 X5CrNi18-10, 1.4401 X3CrNiMo17-132, 1.4306 X2CrNi19-11 and 1.4435 X2CrNiMo17-12-2. While the bellow assemble of stop valve is made from 1.4878 X12CrNiTi18-9, 1.4401 X3CrNiMo17-132, 1.4306 X2CrNi19-11 and 1.4435 X2CrNiMo17-12-2.
Application of Stainless Steel Globe Valve
1. DPI bellows seal globe valve is suitable for regulate and throttle tag water and sewage.
2. It can be employed in such pipelines of chemical, metallurgy, medicine, construction, etc.
3. Beyond that, such stainless steel valve is fit for pipelines of foodstuff, textile, vessel and energy system.
Advantages of Stainless Steel Globe Valve
1. DPI stainless steel globe valve enjoys long service life.
2. It has excellent sealing performance.
3. The open torque is small.
Features
(1) DIN flange stainless steel globe valve features simpler structure and easier maintenance when compared with gate valve.
(2) The disc stroke is not long when the valve is on and off. Its height is a bit lower than that of gate valve, yet the structure length is longer.
(3) The valve stem axis of this stop valve is vertical to valve seat sealing face.
(4) When nominal pressure of medium flow direction is under 16MPa, medium flows up from lower disc. When pressure is above 20MPa, medium flows down from upper disc, which can help intensify sealing performance. When in operation, medium flows in single direction and can’t change direction.
Main Parts Materials
|
|
|
|
|
|
|
No.
|
Part Name
|
Materials of Flange Bellows Seal Globe Valve
|
|
GS-C25
|
1.4308
|
1.4408
|
1.4306
|
1.4435
|
|
1
|
Body
|
GS-C25
|
G-X6crni 18 9
|
G-X6crnimo 18 10
|
G-X2crni18 9
|
G-X2crnimo17 12 2
|
|
2
|
Disc
|
1.4006
X10Cr13
|
1.4301
X5crni18 10
|
1.4401
X3crnimo17 132
|
1.4306
X2crni19 11
|
1.4435
X2crnimo17 122
|
|
3
|
Pin
|
1.4001
X7Cr13
|
1.4001
X7Cr13
|
1.4301
X5crni18 10
|
1.4301
X5crni18 10
|
|
4
|
Bellow Assemble
|
1.4878
X12crniti18 9
|
1.4401
X3crnimo17 132
|
1.4306
X2crni19 11
|
1.4435
X2crnimo17 122
|
|
5
|
Stem
|
1.4006
X10Cr13
|
1.4301
X5crni18 10
|
1.4401
X3crnimo17 132
|
1.4401
X3crnimo17 132
|
1.4435
X2crnimo17 122
|
Structure Diagram of Bellow Sealed Stop Valve
As a professional manufacturer and supplier of valves in China, Lanteky Valve Industry Valve Company provides clients with stainless steel globe valve/stop valve, gate valve, and so forth. With high technology, great production capacity and strong innovation ability, we provide high quality and guaranteed valve. Ball valves, gate valves, globe valves, check valves, forged steel valves and strainers occupy a large market. For more information, please enter our website or contact us directly.
