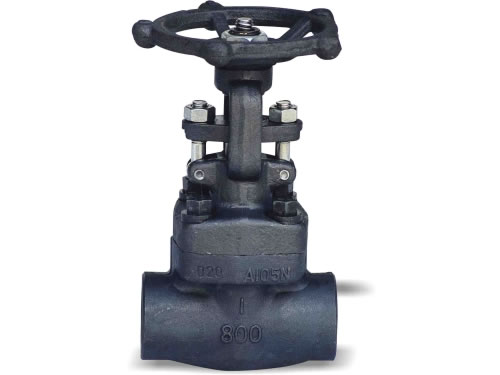

Socket Welded Forged Steel Gate Valve

Introduction

Socket weld forged steel gate valve is a kind of most common open/close valve. It is mainly composed of valve body, disc, bonnet, valve gland, gasket, bolt and nut. This socket weld valve uses disc to connect or cut off medium in pipeline. Disc functions like a sluice gate to connect or cut off media, so it is called gate valve or sluice valve. The on-off component of valve is valve disc. The movement direction of disc is perpendicular to the flowing direction of fluid. Sluice valve can only be opened or closed fully. Flanged sluice valves can be classified according to fluid’s pressure grades (such as 900LB, 1500LB and 2500LB).

Applications

Socket weld forged steel gate valve can be widely applied as fluid regulating and intercepting equipment in various pipelines, such as tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, and energy pipeline systems.

Advantages

1. Numerical control processing is utilized on valve disc.
2. Valve body adopts precision casting technique.
3. Sealing material can be selected according to fluid so as to increase sealing property and wear resistance of the socket weld valve and decrease cost.
4. Valve seat is replaceable, which makes maintenance more simple and convenient.
5. Socket weld forged steel gate valve needs small torsion to open.
6. Twice shot blasting processing on outer surface makes the forged steel valve look fine and smooth.
7. Lifelong technology service is provided for all our products.

Pressure: CLASS900-1500 PN16.0~26.0

1. Bolted Bonnet/Welded Bonnet
2. Full Port
3. Solid Wedge Gate
4. Treaded Ends or SW Ends

Technical Specification of Socket Weld Forged Steel Gate Valve

Technical Specification	ASME/API	GB/JB
Design Standard	API602	GB/T7746
Pressure-Temperature Rating	ASME B16.34	GB/T12224
Face-Face	Factory Standard	GB/T7746
Socket-Welded Ends	ASME B16.11	GB/T1751
Threaded Ends	ASME B1.20.1	GB/T306
Inspection & Test	API598	JB/T9092

Material List for Main Parts of Socket Weld Valve

No.	Part Name	ASTM
		Carbon Steel		Tailess Steel	Alloy Steel
1	Body	A105	LF2/LF3	A182 F304	A182 F11/F22
2	Seat	A182F6a	A182F6a	A182 F304	A182 F11/F22
3	Wedge	A182F6a	A182F6a	A182 F304	A182F6a
4	Stem	A276-410	A276-410	A276-304	A276-410
5	Gasket	Graphite+304
6	Sealing Ring	Graphite
7	Yoke	A216-WCB	A216-WCB	A351 CF8	A216-WCB
8	Bonnet	A105	LF2/LF3	A182 F304	A182 F11/F22
9	Bolt	A193 B7	A320L7	A193 B8	A193 B16
10	Packing	Graphite
11	Stem Bushing	A276-410	A276-410	A276-304	A276-410
12	Gland	A216-WCB	A216-WCB	A351 CF8	A216-WCB
13	Eye Blot	A193 B7	A320 L7	A193 B8	A193 B7
14	Stem Nut	A276-410
15	Hand Wheel	A197 or A47-32510

Main Dimensions & Weight of Socket Weld Forged Steel Gate Valve

Pressure	Size		Main Dimension of Valve								Weight(kg)
	mm	in.	D		L		H		W
			BB/WB	PB	BB/WB	PB	BB/WB	PB	BB/WB	PB	WB	PB
CLASS900 PN16.0	8	1/4	7	-	102	-	166	-	120	-	3.6	-
	10	3/8	10	-	102	-	166	-	120	-	3.5	-
	15	1/2	13	13	102	140	169	321	120	125	3.4	11.5
	20	3/4	18	18	111	140	193	321	125	125	3.8	11.0
	25	1	24	24	120	140	230	321	160	160	7.8	10.2
	32	1-1/4	29	29	120	178	246	380	160	160	11.9	20.5
	40	1-1/2	36.5	36.5	140	178	283	414	180	180	12.2	21.7
	50	2	46.5	46.5	178	216	330	502	200	240	21.9	43.5
CLASS1500 PN26.0	8	1/4	7	-	102	-	166	-	120	-	3.6	-
	10	3/8	10	-	102	-	166	-	120	-	3.5	-
	15	1/2	13	13	102	140	169	321	120	125	3.4	11.5
	20	3/4	18	18	111	140	193	321	125	125	3.8	11.0
	25	1	24	24	120	140	230	321	160	160	7.8	10.2
	32	1-1/4	29	29	120	178	246	380	160	160	11.9	20.5
	40	1-1/2	36.5	36.5	140	178	283	414	180	180	12.2	21.7
	50	2	46.5	46.5	178	216	330	502	200	240	21.9	43.5

Note: H means the height when valve is fully opened.

Payment, Package, Delivery and Maintenance

1. Products can be paid by T/T, D/P, D/A, L/C or according to your requirement.
2. Our socket weld valves are packaged by standard exported wooden cases.
3. Our socket weld forged steel gate valves are transported by sea, railway or air.
4. Guarantee period of our products is 18 months.
